| NO | EQUIPMENT | PARAMETERS | QTY. | MAIN FUNCTION |
| 1 | Uncoiler machine | Coil width: Max 1600mm Coil Thickness: Max 25.4mm Coil weight: Max 36MT | 1 | Steel coil uncoiling |
| 2 | Strip leveling machine | Plate Thickness: Max 25.4mm Plate Width: Max 1600mm Material: B-X80M | 1 | Leveling |
| 3 | Coil Butt Welding unit | Plate Width: Max 1600mm Welding process: SAW | 1 | Coil Butt Welding |
| 4 | Edge milling machine | Plate Thickness: Max 25.4mm Plate width: Max 1600mm Unilateral maximum milling: Max 15mm | 1 | Continuous edgemilling |
| 5 | Forming unit | OD: φ400～φ2500mm Pipe Thickness: Max 25.4mm Material: B-X80M | 1 | Continuous forming |
| 6 | Internal welding | OD: Φ400 ~ 2500mm Power source: DC1500+AC1200 | 1 | Welding |
| 7 | External welding | OD: Φ400 ~ 2500mm Power source: DC1500+AC1200 | 1 | Welding |
| 8 | Flying-sawing unit | OD: φ400～φ2500mm Pipe Thickness: Max 25.4mm Cutting accuracy: ±5mm | 1 | Steel-pipeLength-cutting |
| 9 | Crane | QD32/5-30.5A5 | 3 |
(OD16"～100")

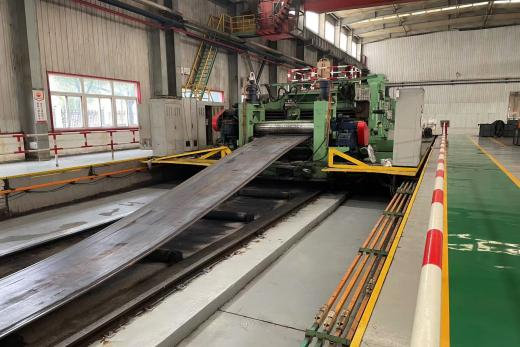

1. Uncoiling

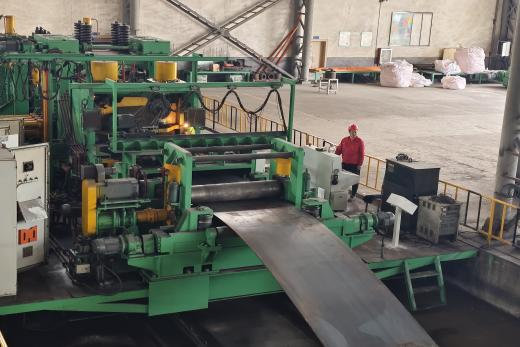

2. Leveling
3. Edge trimming＆Forming

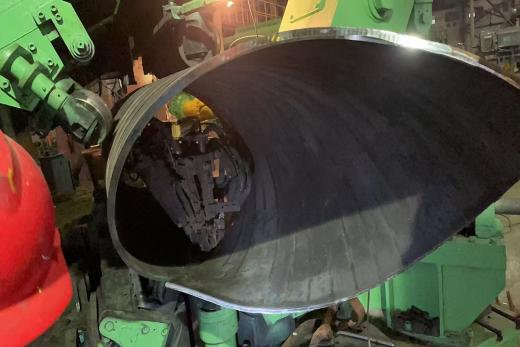

4. Internal Welding

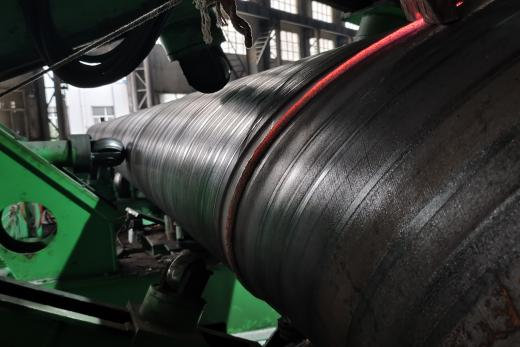

5. External Welding

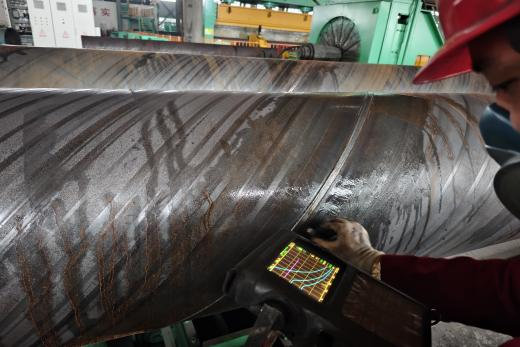

6. Ultrasonic test

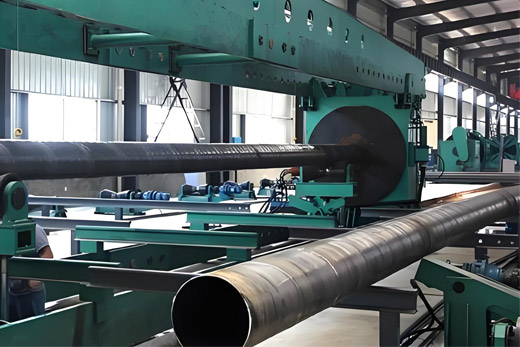

7. Hydrostatic test

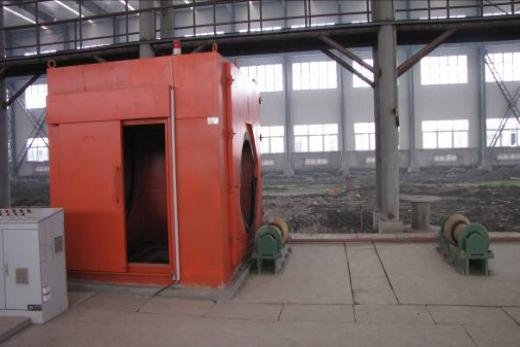

8. RT inspection of pipe end

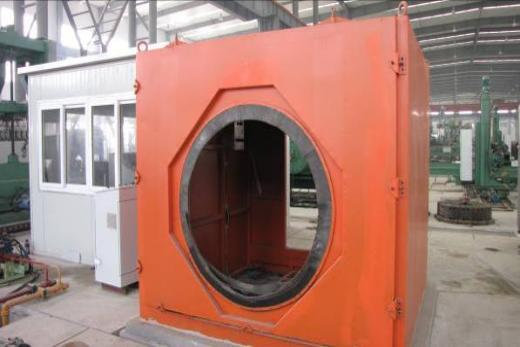

9. RT inspection of pipe body
